Lee Shuknecht & Sons, Inc.

Custom Single Bed Onion Harvesters

When onion farmers consider options to eliminate costly hand labor, they always think of Lee Shuknecht & Sons, Inc. Lee Shuknecht manufactures a full line of self-propelled and pull behind single bed onion harvesters that maintain quality and handle high volumes while reducing expensive labor. This veteran of onion harvesting manufactures two pull-behind models, the PB-66 and PB-80, in addition to the self-propelled SP-80.

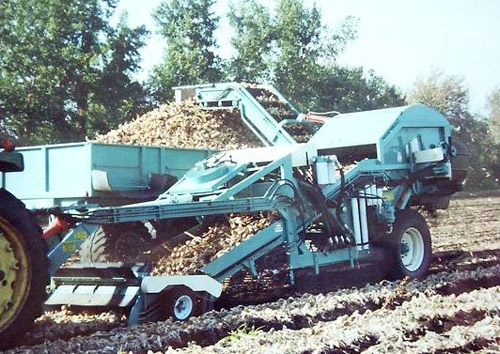

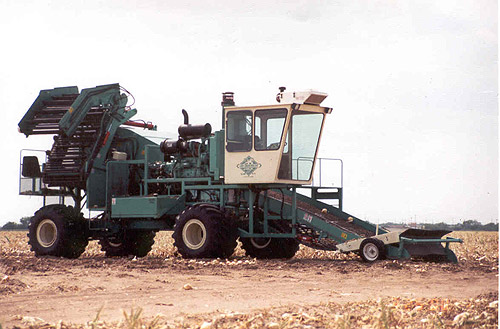

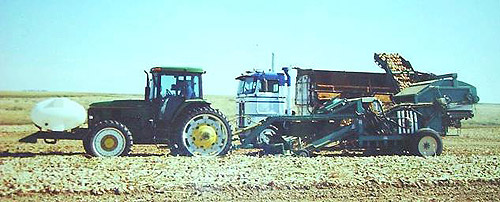

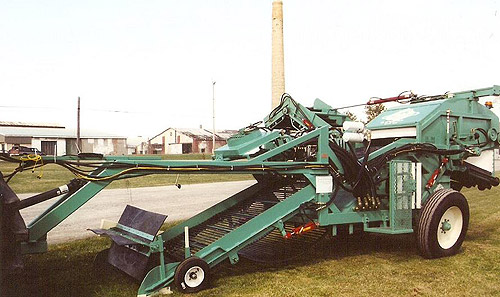

The PB-66 gently picks the onions, tops them, loads them, and returns the tops and trash to the ground, all using only one operator. Using a 48" chain, the PB-66 can work a swath up to 66" wide. The PB-80 also uses a single operator to perform the same functions, its chain width is 62 ½" and it can work up to 80" in a single pass. The low-maintenance, self-propelled SP-80 is a direct loader that eliminates windrowing and provides the highest percentage of topping. It can pick up two 40" beds for a total width of 80" and gently load the onions at a rate of one to three tons per minute. The SP-80 is powered with a 190 hp turbo diesel engine and includes 31" wide high-traction flotation tires with four-wheel drive posi-traction for muddy or mucky conditions. Cab controls include the height and speed of the pick-up elevator, loading elevator height and speed, topper height and speed, ground speed, and blower velocity. Optional operations such as direct harvesting, pre-pulled topping harvesting, and non-topping loads, in addition to opening fields, are all available.

To learn more about this single bed onion harvester, see the table below or contact us directly.

(Click on thumbnail to enlarge)

Request a Quote

Custom Single Bed Onion Harvesters Project Highlights

Product Name
Single Bed Harvesters - Onion Harvester
Pull Behind Models
  • PB-66
  • PB-80
Self-Propelled Models
  • SP-80
  • Picks Up - Tops - Loads/Returns to ground to open field
  • Save Labor Costs
  • One Operator
  • Gentle Handling
  • Removes Trash
  • 66" Wide (48" Chain)
  • Picks Up - Tops - Loads/Returns to Ground
  • Save Labor Cost
  • One Operator
  • Gentle Handling
  • Removes Trash
  • 80" Wide Pick Up (62 1/2" Chain)
  • Eliminates Windrowing
  • Direct Loads (Picks up two 40" beds - up to 80")
  • Low Maintenance
  • Highest Percentage of Topping
  • Tops & Loads 1 -3 Tons per Minute
  • Gentle Handling
Single Operator Options
Harvest - Direct
Harvest - Pre-Pulled Topping
Non-Topping Load
Return To Ground to open field
Opening Fields
Single Operator Cab Controls
Pick-Up Elevator Height & Speed
Topper Height & Speed
Ground Speed
Blower Velocity
Loading Elevator Height & Speed
Self-Propelled Harvester Components
190 HP Turbo Diesel Engine
31" Wide Traction Flotation Tires
Four Wheel Drive Posi-Traction
